LITE
STAGE
Our Lite Stage is one of the lightest yet durable portable stages available on the market. It is perfect for users with a small team, as it can be easily set up by a single person. If you’re in search of a quick-to-assemble, lightweight, and highly portable stage for your next event, the Lite Stage is the ideal choice.
- Less than 13kg
- Various height options
- AUSTRALIA-WIDE DELIVERY
- 750kg loading capacity
- FAST ASSEMBLING
- 3-YEAR STRUCTURAL WARRANTY
LITE STAGE PARTS
Our range includes steps, skirts, and transportation cases designed for a user-friendly stage setup, ensuring a complete and functional stage.

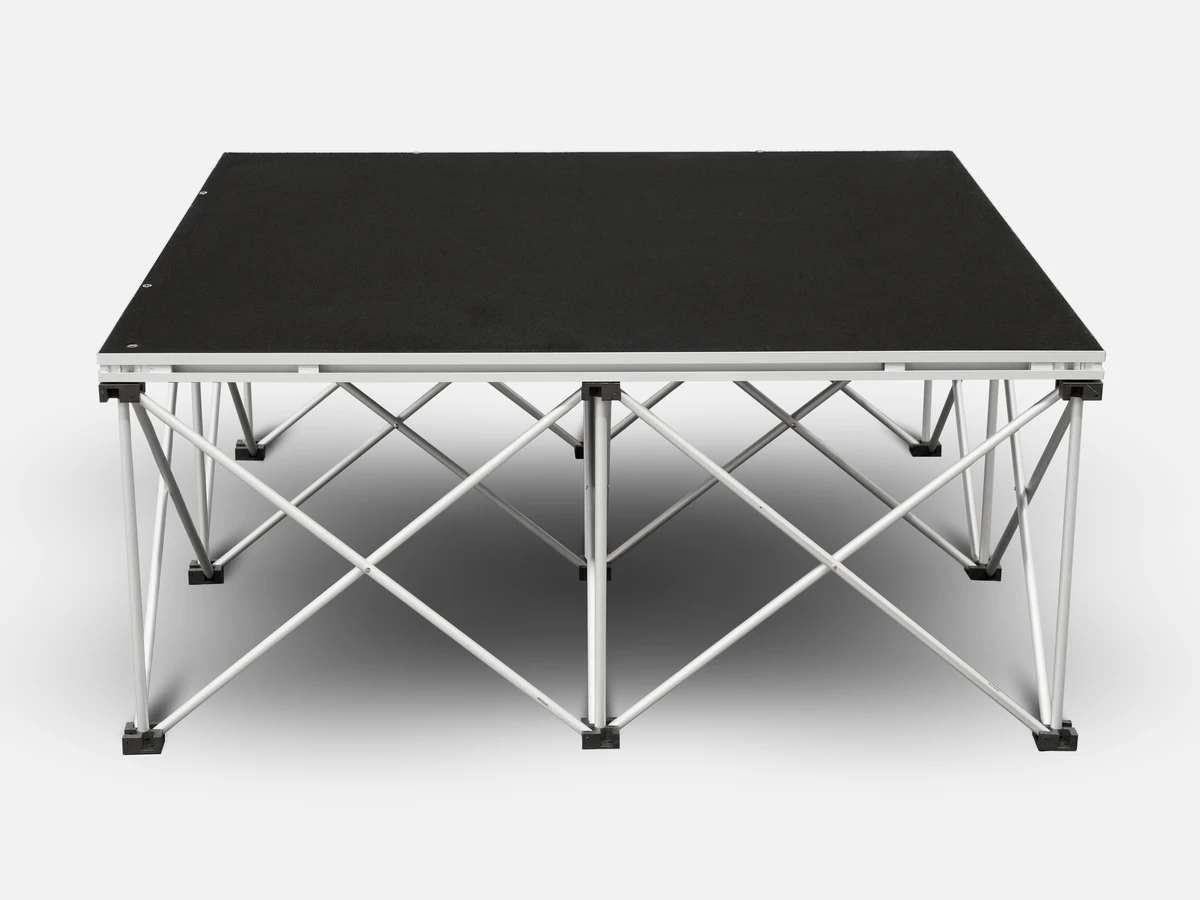

Stage Deck
The Lite Stage is constructed with an aluminum frame and a plywood deck, sized at 1m x 1m and with a thickness of 3cm. This configuration ensures it is both lightweight and easy to manage. Installation is simple; you only need an Allen key to attach the legs to the decks and to join the decks together. Completed with a premium black carpet finish, the stage deck delivers a sophisticated appearance for your event.
DECK SIZES: | 1m x 1m x 3cm ( L x W x H ) |
DECK WEIGHT: | 12.5kg |
SURFACE: | Black Carpet |
Stage Legs
Made from lightweight aluminium, the Lite Stage leg features a unique concertina design that offers nine points of support to the stage deck, ensuring maximum loading capacity and stability.
The setup is quick and easy — Fully unfold the leg, and the stage decks can be inserted into the adapter to lock in securely. After the event, the legs can be folded up for compact storage.
AVAILABLE HEIGHTS: | 20cm, 30cm, 40cm and 60cm |
MATERIAL: | Aluminum with plastic feet |

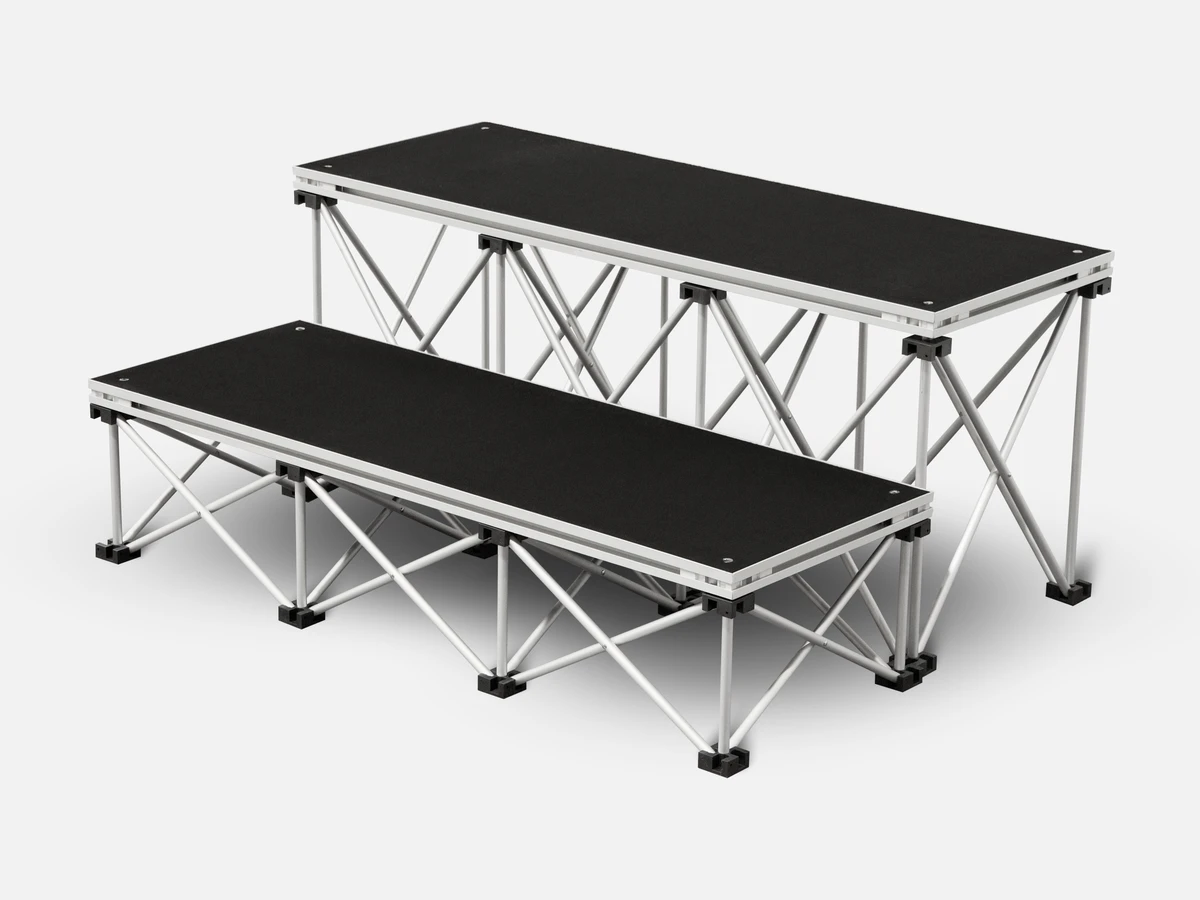

Stage Step
The Lite Stage Step is a great addition for easy access on and off your stage.
Constructed with the same materials and design as the stage itself, the step can be easily mounted onto the stage using the clamp supplied with each order. With 20cm increments, the step height can be adjusted to one step, two steps, or three steps.
STEP SIZE: | 100cm x 40cm ( L x W ) |
STEP HEIGHTS: | 1 Step, 2 Steps and 3 Steps |

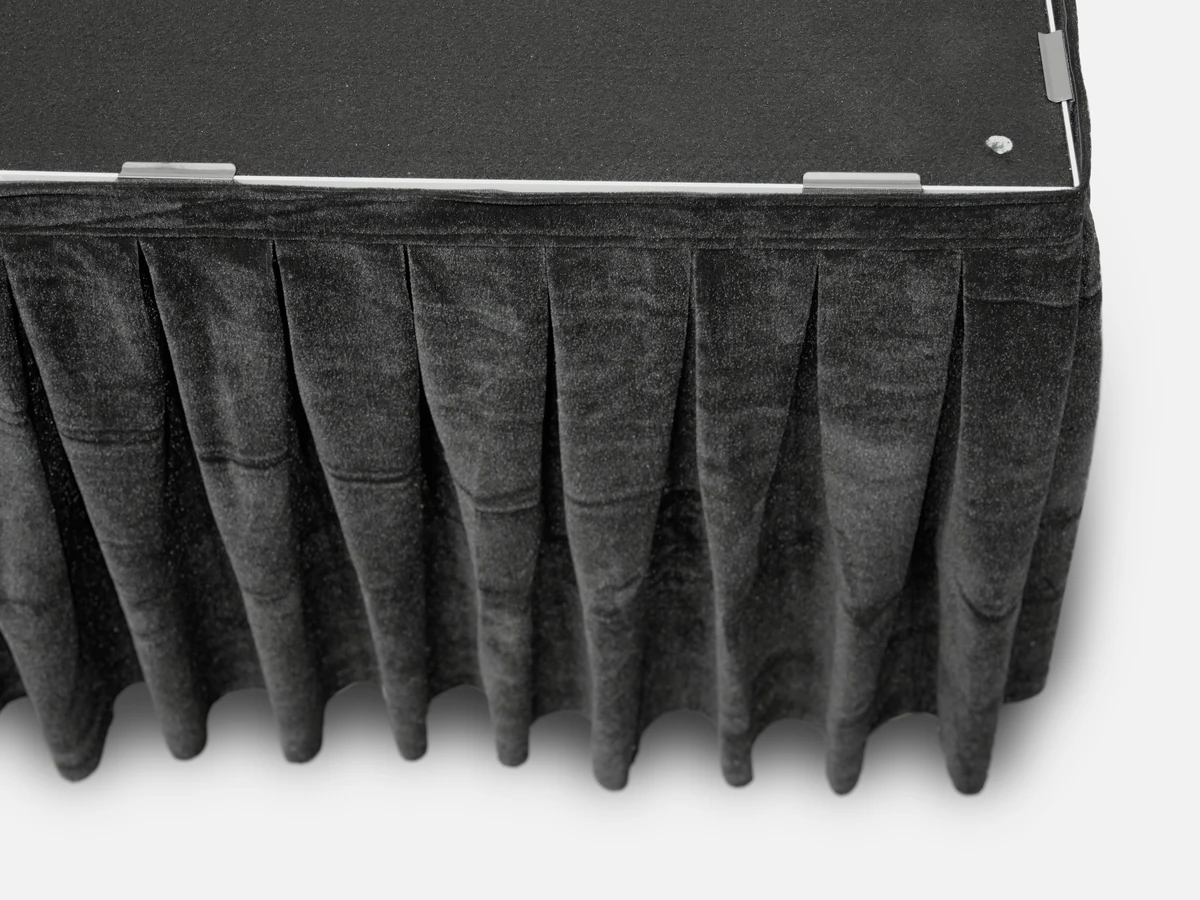

Stage Skirts
Lite Stage skirts offer the ideal finishing touch for your fully assembled stage. Designed to conceal what the audience doesn’t need to see beneath the stage, they ensure a seamless and professional look.
Made from high-quality pleated velvet, Lite Stage skirts easily attach to the edge of your stage with pre-fabricated Velcro. They are available in heights ranging from 200mm to 600mm to perfectly match the height of your stage.
MATERIALS: | Pleated Black Velvet |
LENGTH: | 2 Meters |
HEIGHTS: | 20cm, 30cm, 40cm and 60cm |

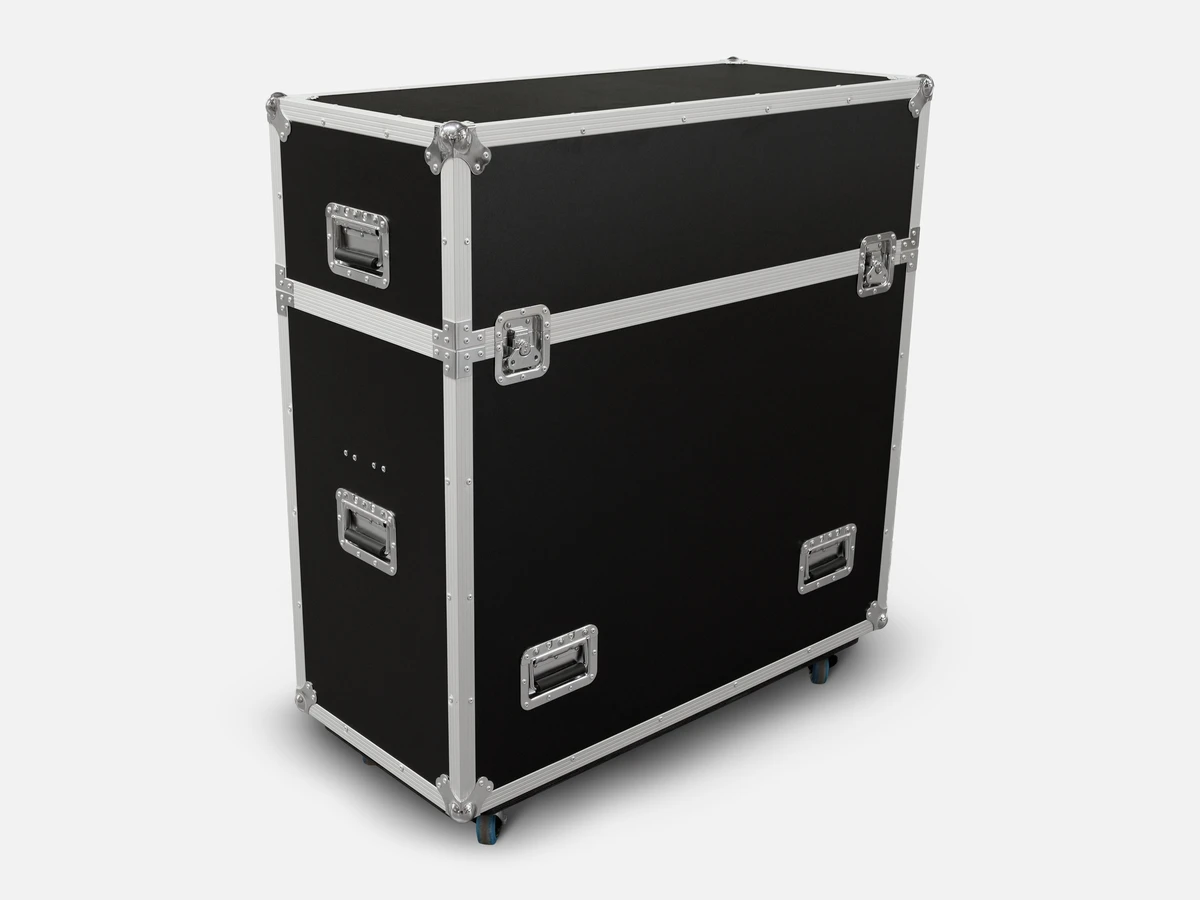

Road Case
Transporting your stage is quick and easy with the Lite Stage road case. Each road case can hold up to six decks and legs, with enough space for other accessories, such as skirts and connection hardware.
The road case’s compact design allows you to wheel it through doorways and into elevators easily. Heavy-duty casters and brakes ensure a smooth journey without mishaps. Additionally, when not in use, the road case does not require too much storage space. It offers an excellent solution for making your stage fully portable and for protecting your investment.
STORAGE CAPACITY: | 6 x Decks & Legs, and Other Accessories |
DIMENSIONS: | 110cm x 50cm x 120cm ( L x W x H ) |
Caster Boards
When you need to store or transport multiple decks, Lite Stage transportation caster boards facilitate the task with minimal effort. Each caster board can accommodate up to 24 decks, making these boards ideal for relocating an entire stage to a different venue or for on-site storage between shows.
A corner locking mechanism ensures the base deck remains securely fastened to the caster board. Furthermore, industrial-grade ratchets, straps, and manually locking caster wheels are used to prevent the decks from coming loose during transit.
STORAGE CAPACITY: | Up to 24 Lite Stage Decks |
SIZE: | 105cm x 105cm x 15cm ( L x W x H ) |
HOW TO ASSEMBLE THE STAGE
HOW TO ASSEMBLE STEP & SKIRT
TRANSPORTATION ROAD CASE
PACKAGE & PRICING
The following prices are provided as indicative and general guidelines for some of the most popular stage sizes. Please note that these prices may vary depending on specific requirements and additional accessories. For accurate pricing, please contact us for a quote based on your requirements.
Download Product Brochure

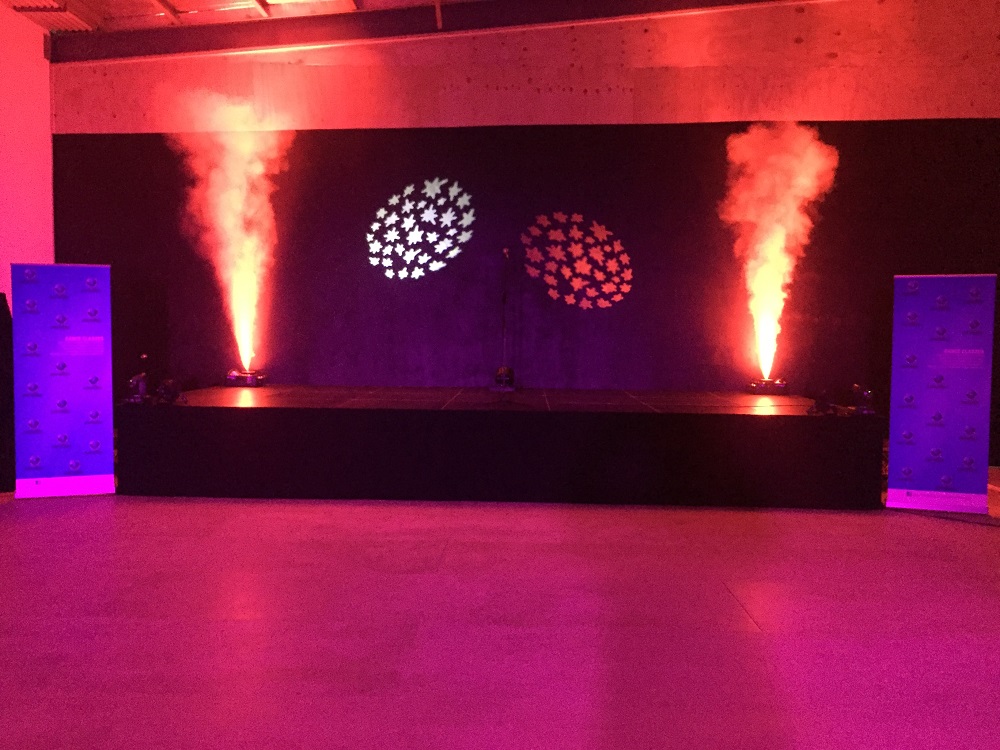

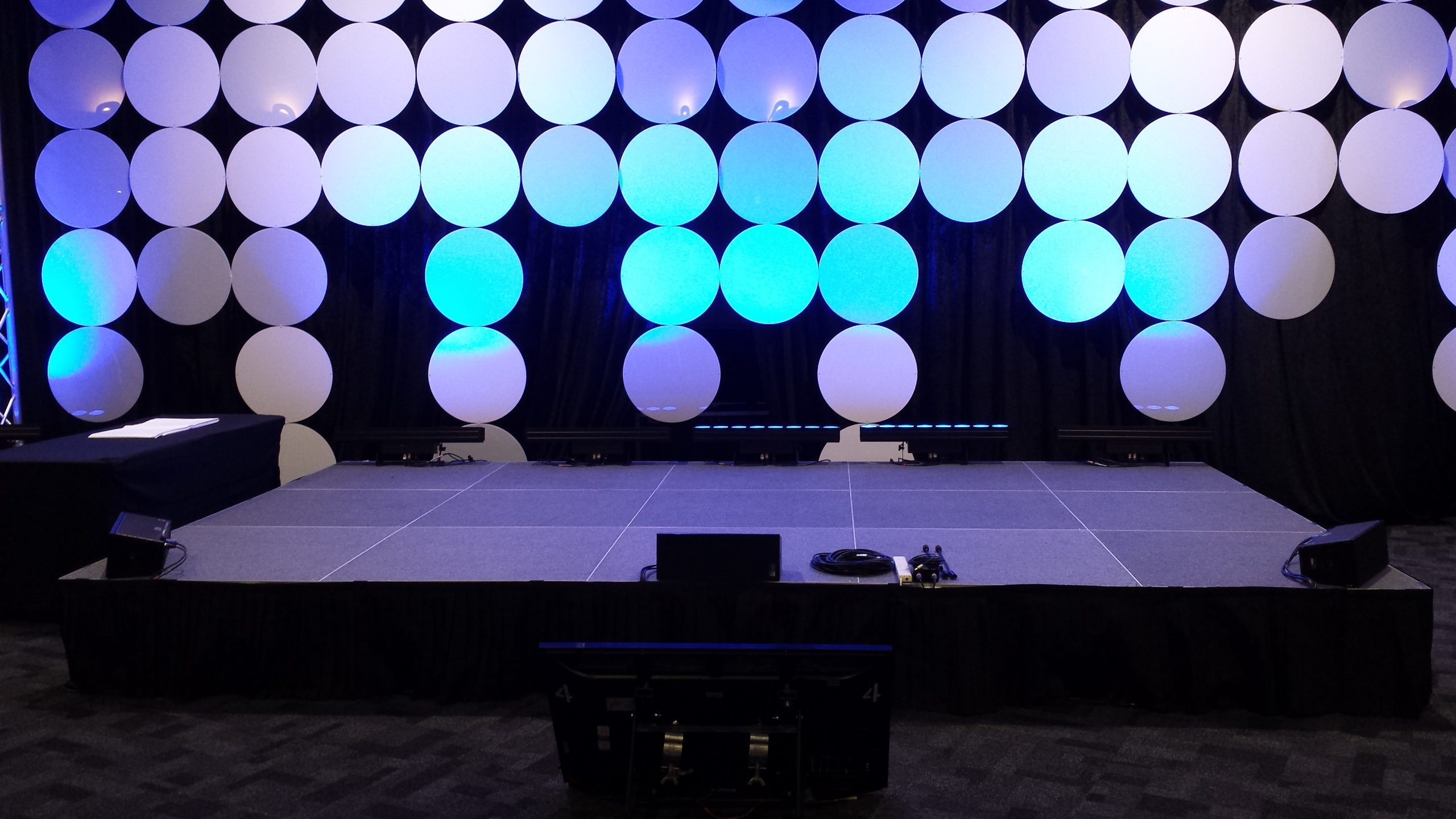

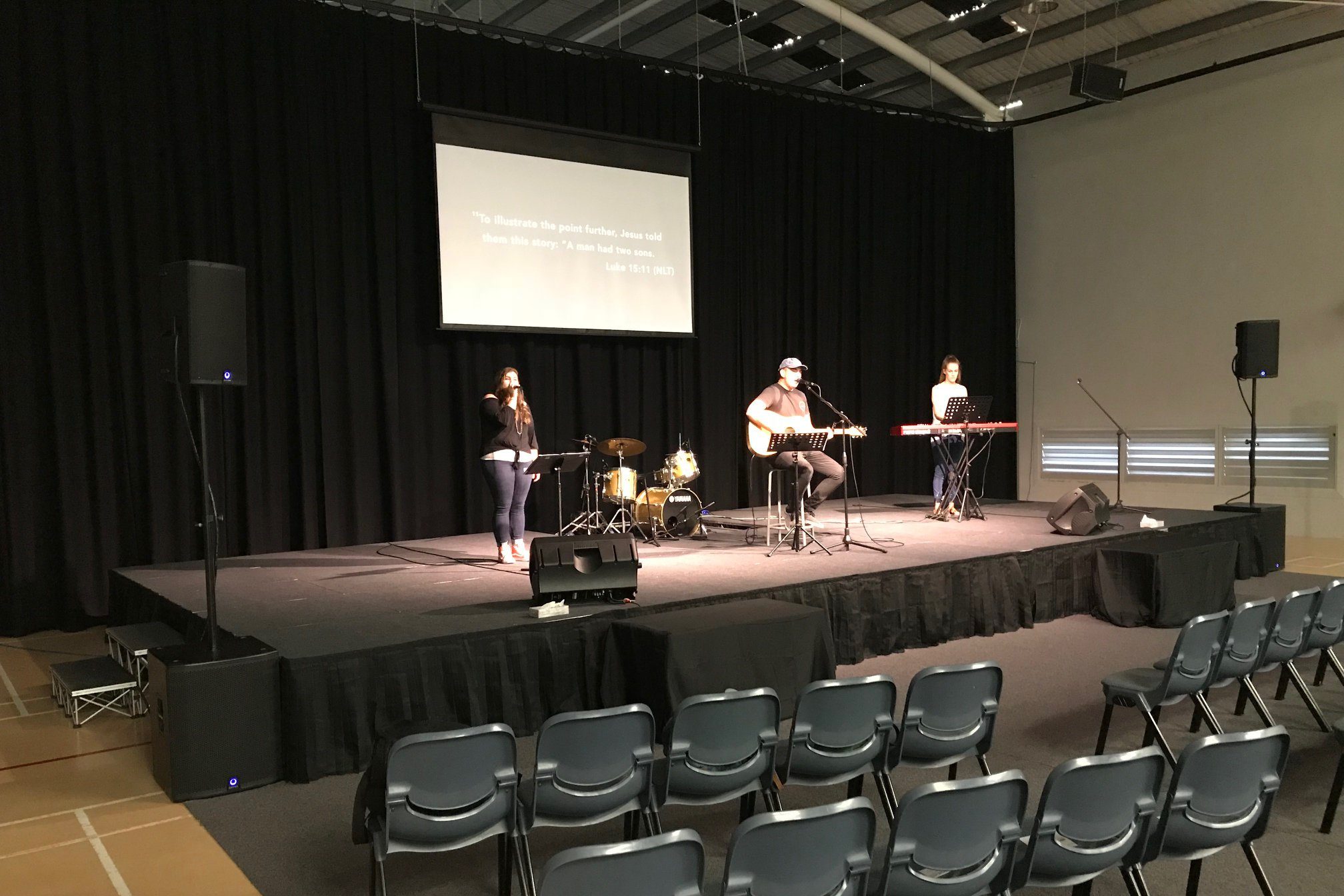

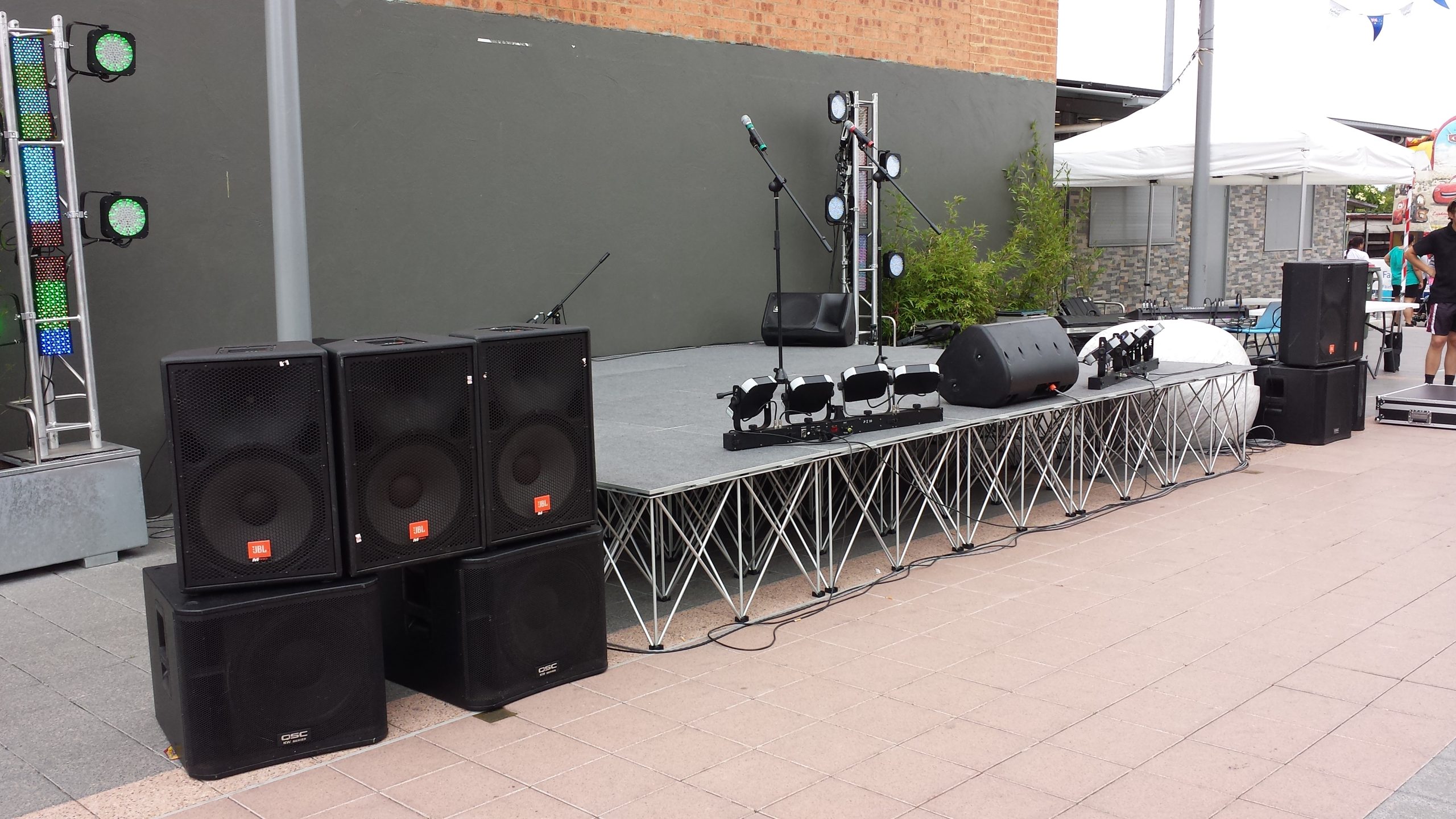

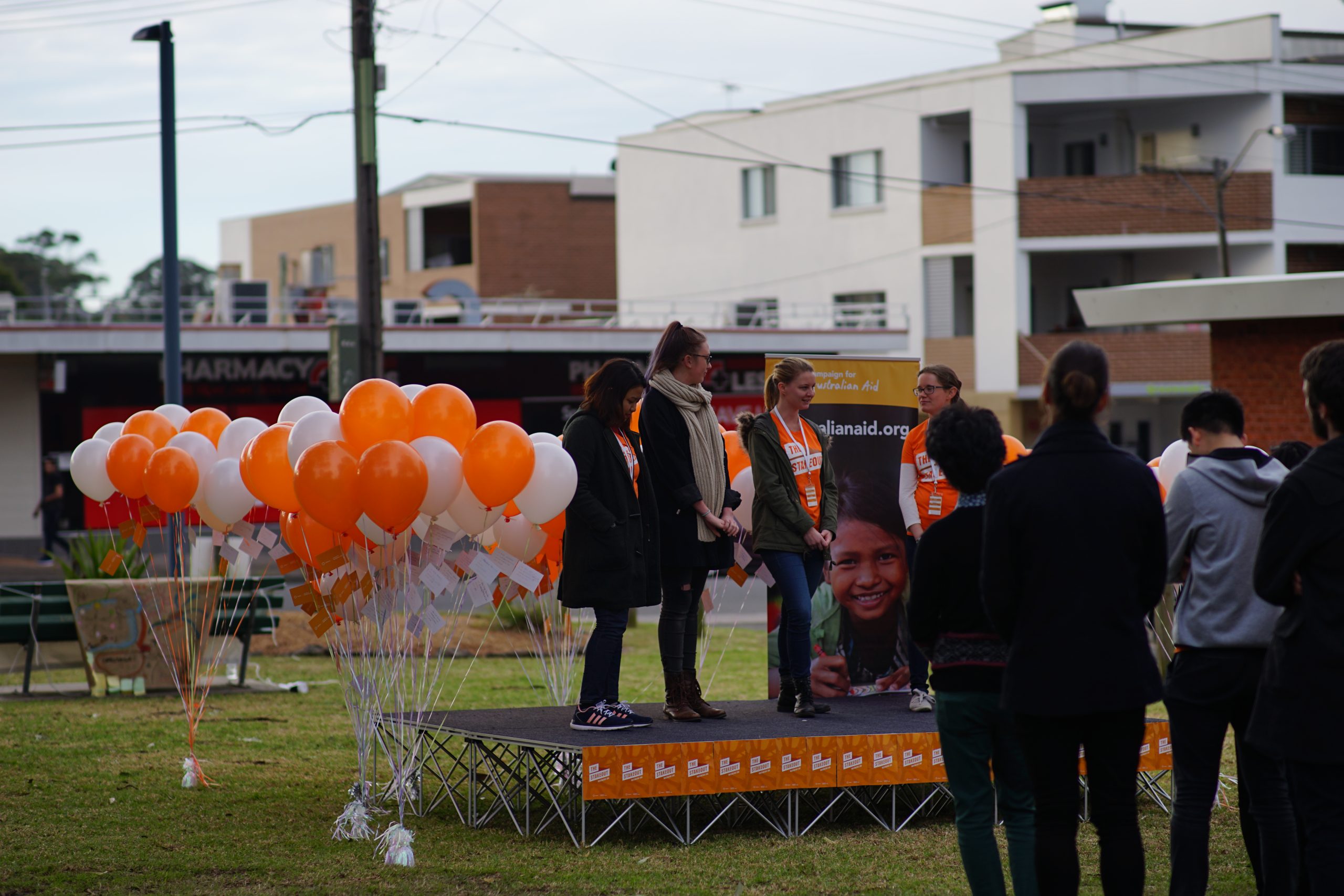

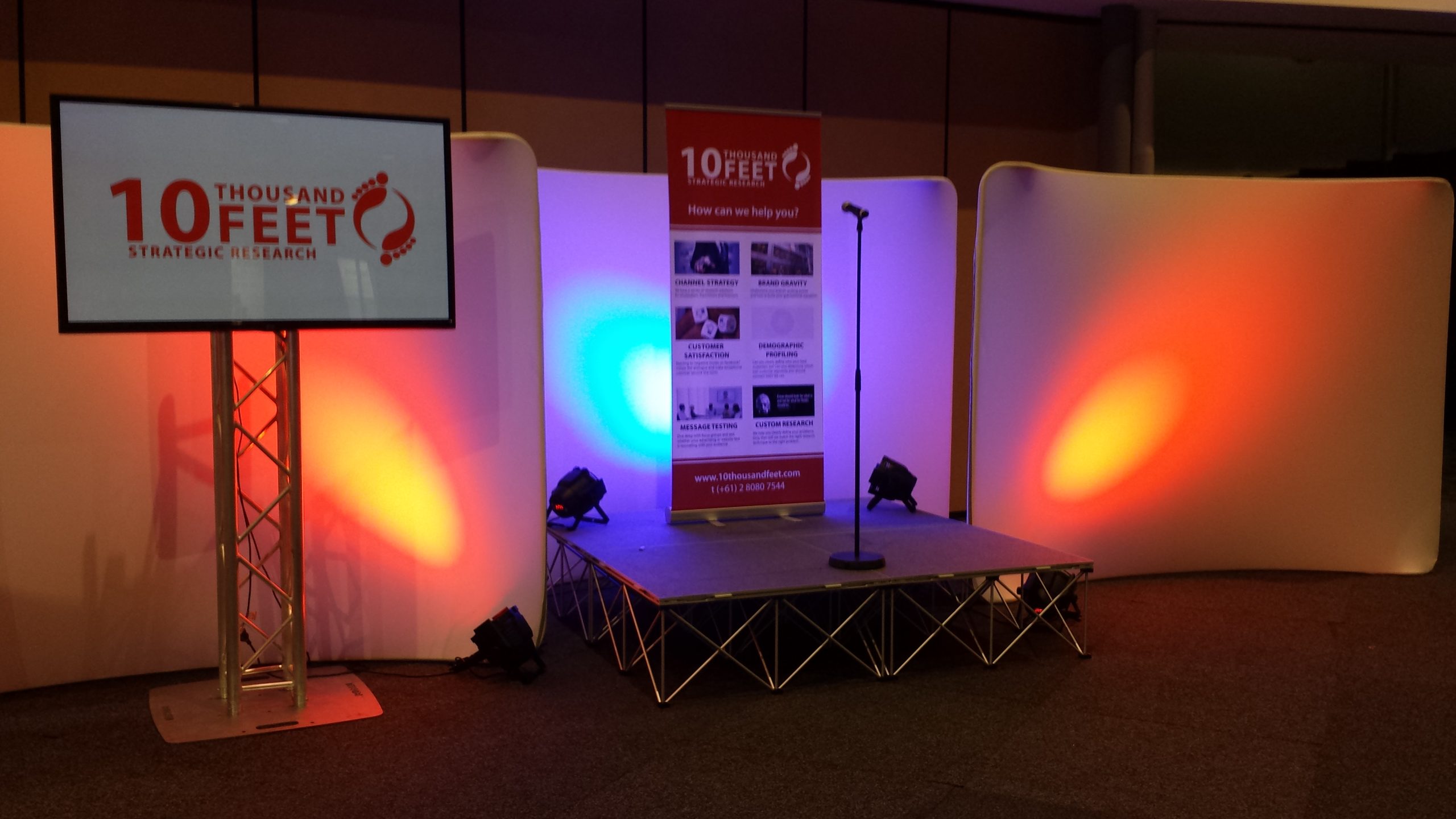

PREVIOUS PROJECTS
